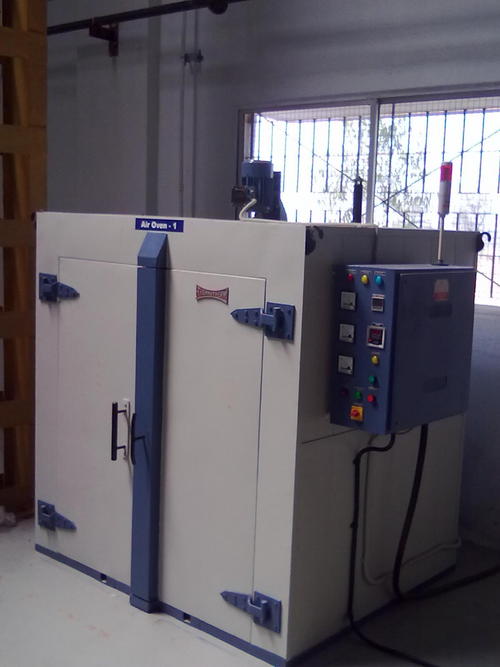

Drying Ovens

Chamber capacity: 500-14,000 liters, at temperature up to 250oC and 625oC.

Construction: Ferritic stainless steel interior, mild steel clad with zinc coated steel sheet interior

Owing to low thermal mass insulation and heavy-duty impellers at 1400 rpm driven by three phase electric motors, the high thermal efficiency and horizontal airflow are achieved

Vertical airflow is available on selected models

A temperature uniformity of +5oC to within 100 mm of the walls and roof and 150 mm of doors and floors.

Models: Fitted with side-hinged doors, either single or double, depending on size of the oven

Its vertical doors are fitted as standard equipments on large volume 600oC (over 1m3) and remain optional for other models.

Fan is meant for circulation of the heated air which designed for cross-flow with impeller provided to rotate freely without a surrounding fan housing

Impeller has fan blades that rotates air jet slowly in the direction similar to impeller rotation

Fan blades can also be designed to rotate air jet opposite direction impeller rotation

The vertical circular type drying ovens envelopes the noxious fumes

The drying oven includes drying chamber, having circular top wall and downwardly supporting sidewall that is closed off at the bottom by another wall

A doorway is also provided for allowing the introduction of the material to be dried in the exhaust chamber

Used in high-forced volume thermal convection applications like inert atmosphere, clean rooms, forced convection, horizontal airflow and natural convection and also in in industries like technology industry, health care industry and transportation

Provide uniform temperature throughout

These laboratory ovens are available in one cubic feet to 32 cubic feet dimensions along with adequate temperature range, which can be over 650oF (340oC)
